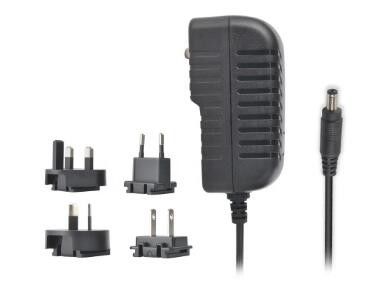

UL Ac Adaptor 12V Transformer Supply Electronic Ac-dc Driver SAA 12v 1.5a 24v 0.75a Interchangeable Plug Power

Product Categories

Yiwu Tumei E-commerce CO., LTD

Contact Now

Brand Name : YHY

Model Number : YHY-12001500

Certification : UL, TUV, GS, PSE, RCM, SAA, C-tick, KC, GS, BLS, CE, FCC, CCC, NOM

Place of Origin : China, Shenzhen

MOQ : NO

Price : USD2.88-5.5 per piece

Payment Terms : T/T, Western Union, PayPal

Supply Ability : 1000000pcs per week

Delivery Time : 10-15 work days

Packaging Details : Carton+White box Carton Size:54*23.5*34.5cm 80PCS/CTN

Output Type : Single

Connection : plug in

Output current : 1.5A-1.7A

Input Voltage : 100-240VAC

Output Frequency : 50/60Hz

DC Jack : 5.5*2.1/5.5*2.5 etc

DC cable length : 1.2m/1.5m or customized

Power : 18-20W

Warranty : 3years

Contact Now

UL Ac Adaptor 12V Transformer Supply Electronic Ac-dc Driver SAA 12v 1.5a 24v 0.75a Interchangeable Plug Power

UL Ac Adaptor 12V Transformer Supply Electronic Ac-dc Driver SAA 12v 1.5a 24v 0.75a Interchangeable Plug Power

Input Voltage Range	100-240Vac 50/60Hz
Input Current(Max)	2.5A
Temperature Coefficient	±0.05%/℃
Voltage Accuracy	±2%
Total Regulation	±5%
Ripple & Noise	120mV
Short Circuit Protection	Continuous - hiccup mode
Over Voltage Protection	110-150% of nominal (Cycle input power to reset)
Efficiency at Average Load	88% min
Operation Temperature	0 to ＋60℃, derating linearly to 50% load above 40℃
Storage Temperature	-10 to ＋85℃
Humidity (non condensing)	10-90% RH
Cooling	Convection
Withstand Voltage	Input to Ground 1.5kVAC
	Input to Output 3kVAC
	(Output is connected to Ground)
Vibration (non condensing)	23.52m/s2 (10 - 55Hz: constant sweep 1 min X, Y, Z for 1 hour)
Shock	< 196.1 m/s2 (20G)
Safety Agency Certifications	UL62368,UL1310,UL60950-1, EN609501-1, IEC60950-1, CE Mark
DOE Regulation	VI
Off-Load Power Consumption	<210mV
Conducted & Radiated EMI	EN55023-B, FCC Class B
Immunity	EN55024

UL Ac Adaptor 12V Transformer Supply Electronic Ac-dc Driver SAA 12v 1.5a 24v 0.75a Interchangeable Plug Power

Power	Output	Output	AC Type
Power	Voltage	Current	AC Type
18W Series	0-6.0V	0-3.0A	Desktop
	7-12.0V	0-1.5A	Wall-mounted
	13-18.0V	0-1.0A	Interchangeable
	19-25.0V	0-0.75A
	26-30.0V	0-0.6A
Remark:
1.Model NO : YHY-XXXYYYYY , "XXX" is for current "YYYYY" is for voltage
2.Input :100-240Vac , 50-60Hz , 2.5A max.
